PLC programming involves several common pitfalls that even experienced engineers can fall into. Below are some typical programming errors and effective strategies to avoid them:
Logic Errors
Double Coil Outputs
- Pitfall: Assigning the same output coil multiple times within a program can result in unpredictable behavior.
- Avoidance: Thoroughly verify your program logic, ensuring that each output coil is assigned only once.
Unclear Logic Flow
- Pitfall: Poorly structured logic can cause confusion and incorrect control sequences.
- Avoidance: Use structured programming techniques such as flowcharts or state diagrams to clearly define your program logic.
Data Type and Conversion Errors
Data Type Mismatch
- Pitfall: Mixing incompatible data types can lead to data overflow or incorrect outcomes.
- Avoidance: Ensure consistent data types and explicitly convert types when necessary.
Floating-Point Comparisons
- Pitfall: Directly comparing floating-point numbers for equality can result in errors due to precision limitations.
- Avoidance: Use a tolerance range when comparing floating-point numbers instead of checking for exact equality.
Timer and Counter Errors
Timer and Counter Reset Issues
- Pitfall: Failing to reset timers or counters correctly prevents proper operation.
- Avoidance: Reset timers and counters at the correct intervals to maintain accurate functionality.
Insufficient Input Signal Duration
- Pitfall: Input signals shorter than the timer’s preset duration can prevent accurate timer triggering.
- Avoidance: Ensure input signals last long enough, or use edge-triggered instructions to ensure proper timing.
Communication Issues
Incorrect Communication Settings
- Pitfall: Incorrect configuration of communication parameters prevents the PLC from communicating with external devices.
- Avoidance: Verify communication settings, including baud rates, data bits, stop bits, and parity, to ensure proper communication.
Communication Timeouts
- Pitfall: Timeouts during communication processes can lead to unexpected behavior.
- Avoidance: Set reasonable timeout durations and implement appropriate error-handling routines to handle communication delays.
Insufficient Error Handling
Lack of Error Management
- Pitfall: Neglecting abnormal conditions like input errors or device faults can cause instability or crashes.
- Avoidance: Implement robust error-handling mechanisms with fault detection and alarm notifications.
Unmanaged Interrupts
- Pitfall: Poorly handled interrupt events can cause slow responses or malfunctions.
- Avoidance: Design interrupts clearly, ensuring timely and accurate interrupt management.
Poor Program Maintainability
Insufficient Comments and Documentation
- Pitfall: Programs lacking clear comments and documentation are difficult to understand and maintain.
- Avoidance: Provide thorough comments and detailed documentation to clarify program functions and logic.
Code Redundancy
- Pitfall: Excessive redundant code increases complexity and hinders maintenance efforts.
- Avoidance: Optimize the code structure, eliminate redundancies, and improve readability and maintainability.

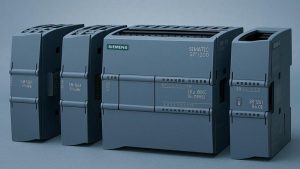

Hardware Configuration Errors
Incorrect I/O Configuration
- Pitfall: Misconfigured I/O modules lead to incorrect input/output signals.
- Avoidance: Carefully verify I/O module configuration, ensuring the correct types and addressing.

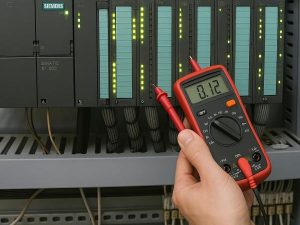

Wiring Errors
- Pitfall: Incorrect external wiring can cause signal failure or hardware damage.
- Avoidance: Follow wiring diagrams precisely and conduct rigorous inspections and testing.
